Key features

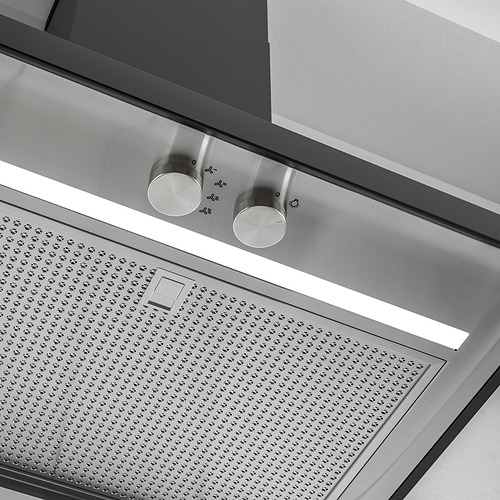

You can easily remove and clean the grease filter in the dishwasher. One grease filter included.
5-year Limited Warranty. Read about the terms in the Limited Warranty brochure.
LED light source included; effectively illuminates the cooking surface and provide energy saving.
Can be installed in two ways: ducted to the outside or in recirculation mode fitted with charcoal filter.
Designer
Good to know
Energy efficient class A.
Extraction rate in exhausting mode: 300 CFM.
Noise level at max. exhaust speed: 65 dB (A).
Extraction rate in re-circulation mode: 234 CFU.
Noise level at max. re-circulation speed: 70 dB (A).
Voltage: 220-240V.
Motor power: 210W.

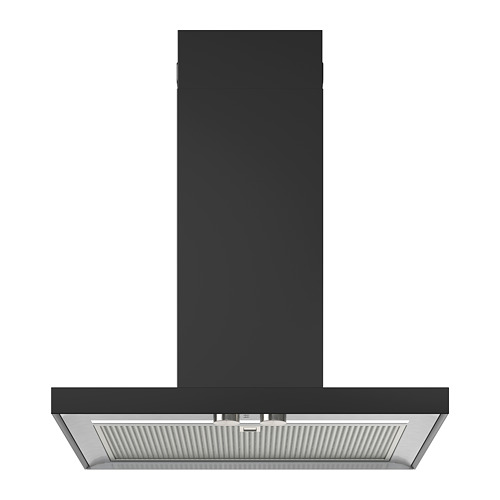

Wall-mounted extractor hood with 4 speeds.
For installation to a valve: to be completed with NYTTIG tube 59" flexible pipe for extractor hood.
For recirculation installation: to be completed with NYTTIG tube 59" and charcoal filter NYTTIG FIL 559.

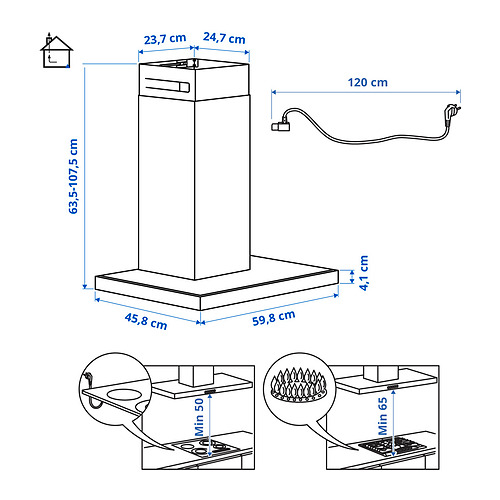

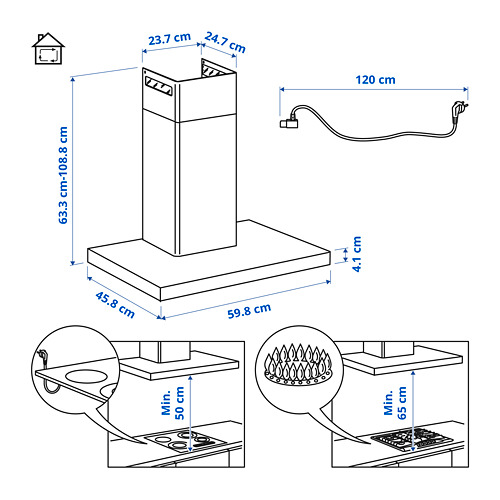

Measurements
Assembled size
Max. height extraction: | 107,5 cm |
Min. height extraction: | 63,5 cm |
Max. height recirculation: | 108,8 cm |
Min. height recirculation: | 63,3 cm |
Width: | 59,8 cm |
Depth: | 45,8 cm |
Height: | 42,0 cm |
Cord length: | 1,2 m |
Weight: | 12,90 kg |
Width of chimney: | 23,7 cm |
Depth of chimney: | 24,7 cm |
Package size & weight
Do you take it home? Make sure it fits in your vehicle.
Length: | 64 cm |
Width: | 57 cm |
Height: | 36 cm |
Weight Gross: | 15,42 kg |
Weight Net: | 12,26 kg |
Volume per package: | 130,9 l |
Assembly instructions
Advice instructions
Only the latest versions of these documents are available for download. This means that there may sometimes be differences between the documents you download and the versions that come with the product.
