Key features
5-year Limited Warranty. Read about the terms in the Limited Warranty brochure.
LED light source included; effectively illuminates the cooking surface and provide energy saving.

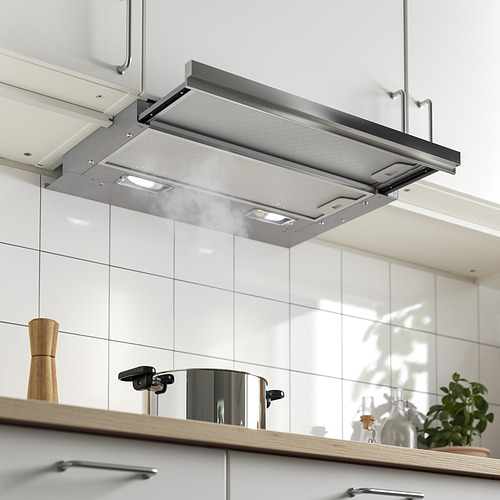

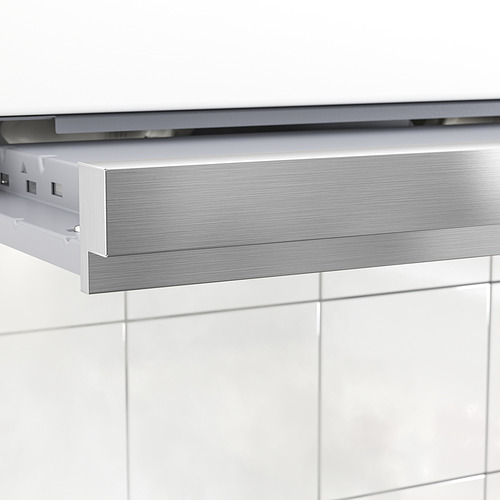

Pulls out to provide a larger exhaust area.
You can easily remove and clean the grease filter in the dishwasher.
Can be installed in two ways, either vented to the outside or in recirculation mode fitted with charcoal filter.
Designer
Good to know
This product bears the CE mark.
Wall mounted extractor hood with 3 different speeds.
Energy efficiency class: B.
Extraction rate in exhausting mode: 200 CFM.
Noise level at max. exhaust speed: 67 dB (A).
Extraction rate in re-circulation mode: 82 CFM.
Noise level at max. re-circulation speed: 72 dB (A).
Motor power: 110W.
Voltage: 220-240V.
For installation to a valve: to be completed with NYTTIG tube 59" flexible pipe for extractor hood.
For recirculation installation: to be completed with NYTTIG TUB 6" flexible pipe and NYTTIG FIL 120 charcoal filter.

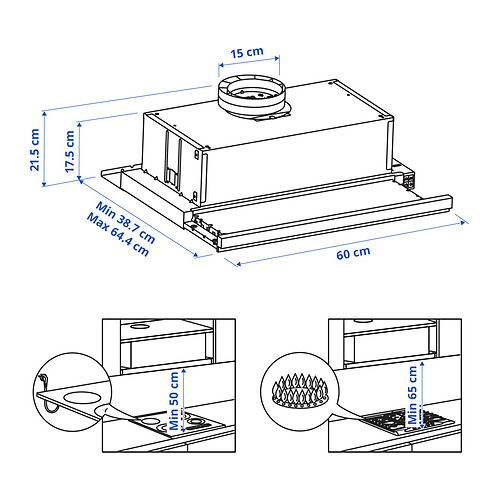

Measurements
Assembled size
Width: | 60,0 cm |
Height: | 21,5 cm |
Min. depth: | 38,7 cm |
Max. depth: | 64,4 cm |
Cord length: | 109,0 cm |
Weight: | 7,60 kg |
Package size & weight
Do you take it home? Make sure it fits in your vehicle.
Length: | 68 cm |
Width: | 38 cm |
Height: | 27 cm |
Weight Gross: | 9,30 kg |
Weight Net: | 6,28 kg |
Volume per package: | 67,8 l |
Assembly instructions
Advice instructions
Only the latest versions of these documents are available for download. This means that there may sometimes be differences between the documents you download and the versions that come with the product.
