Key features
Can be installed in two ways, either vented to the outside or in recirculation mode fitted with charcoal filter.
5-year Limited Warranty. Read about the terms in the Limited Warranty brochure.

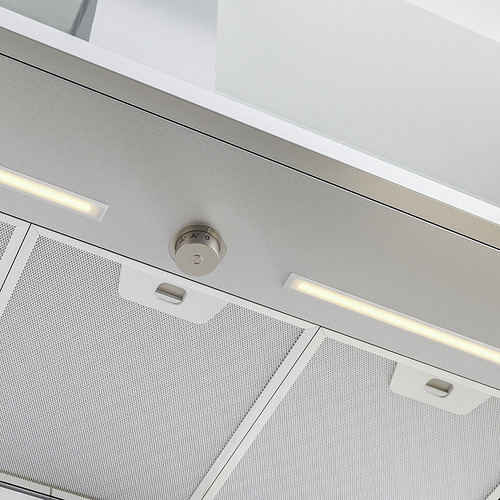

LED light source included; effectively illuminates the cooking surface and provide energy saving.
You can easily remove and clean the grease filter in the dishwasher.
Designer
Good to know
Energy efficiency class: B.
Extraction rate in exhausting mode: 235 CFM.
Noise level at max. exhaust speed: 65 dB (A).
Extraction rate in re-circulation mode: 112 CFM.
Noise level at max. re-circulation speed: 70 dB (A).
Motor power: 110W.
Voltage: 220-240V.

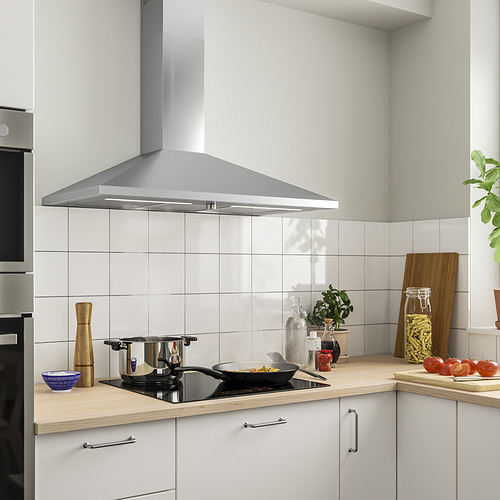

Wall mounted extractor hood with 3 different speeds.
This product bears the CE mark.
For installation to a valve: to be completed with NYTTIG tube 59" flexible pipe for extractor hood.
For recirculation installation: to be completed with charcoal filter NYTTIG FIL 400.

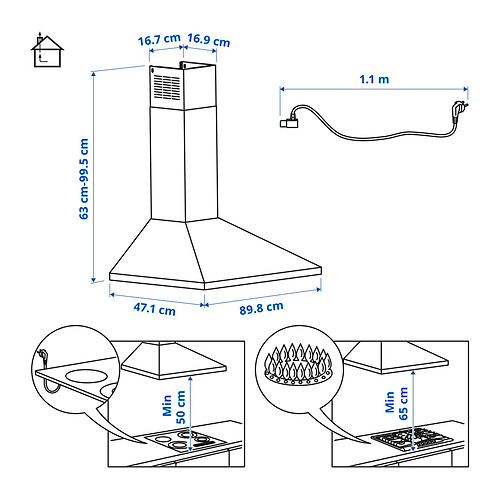

Measurements
Assembled size
| Max. height extraction: | 99,5 cm |
| Min. height extraction: | 62,0 cm |
| Max. height recirculation: | 99,5 cm |
| Min. height recirculation: | 71,5 cm |
| Width: | 90,0 cm |
| Depth: | 47,1 cm |
| Cord length: | 1,1 m |
| Weight: | 8,30 kg |
| Width of chimney: | 16,7 cm |
| Depth of chimney: | 16,9 cm |
Package size & weight
Do you take it home? Make sure it fits in your vehicle.
| Length: | 98 cm |
| Width: | 55 cm |
| Height: | 27 cm |
| Weight Gross: | 12,00 kg |
| Weight Net: | 9,06 kg |
| Volume per package: | 143,5 l |
Assembly instructions
Advice instructions
Only the latest versions of these documents are available for download. This means that there may sometimes be differences between the documents you download and the versions that come with the product.
